Minimum and Maximum Length of a Code 128 barcode
-
Code 128 is a variable-length, high-density barcode symbology, which means that the length of a Code 128 barcode can vary based on the amount of data that needs to be encoded. The minimum length of a Code 128 barcode is one character, and there is no fixed maximum length. The length of a Code 128 barcode is determined by the number of characters that need to be encoded and the specific encoding scheme used.
-
Code 128 uses three different encoding sets to encode characters. Each set is optimized for encoding certain characters. The first set (Set A) is used to encode uppercase letters, control characters, and some special characters. The second set (Set B) is used to encode uppercase and lowercase letters, numbers, and some special characters. The third set (Set C) is used to encode numeric data.
-
The Minimum Length of a Code 128 barcode varies depending on which encoding set is used. For example, if Set A is used, the minimum length of a Code 128 barcode is two characters, because the first character must be a start code and the second character must be from Set A. If Set C is used, the minimum length of a Code 128 barcode is four characters, because each pair of characters in the barcode represents a two-digit number.
In general, the length of a Code 128 barcode is limited only by the practical constraints of the scanning system being used. The more characters that are encoded in a barcode, the wider the barcode becomes, and the more difficult it may be to print and scan accurately. However, with modern scanning technology and printing techniques, Code 128 barcodes can be quite long without causing significant problems.
CODE-128 is a Barcode for Encoding Characters
Code 128 barcode is a high-density linear barcode that can encode all ASCII characters, including letters, numbers, and symbols. It is capable of encoding any length of text and has a high level of data security due to its built-in error detection and correction features.
Code 128 uses three sets of encoding characters: Code Set A, Code Set B, and Code Set C. Each set can encode different types of characters and has its own start and stop codes. Code Set A can encode uppercase letters, numbers, and control codes, Code Set B can encode uppercase and lowercase letters, numbers, and symbols, while Code Set C is used to encode numbers only, in pairs. The selection of the appropriate code set depends on the type of data being encoded and the required density.
Code 128 also has special characters that can be used to perform certain functions, such as switching between code sets, inserting FNC1 codes for encoding GS1 data, and adding check digits for error detection and correction.
The following table shows the characters that can be encoded in Code Set A, Code Set B, and Code Set C of Code 128:
| Character | Code Set A | Code Set B | Code Set C |
|---|---|---|---|
| 0-9 | ✔ | ✔ | ✔ |
| A-Z | ✔ | ✔ | |
| a-z | ✔ | ||
| Control | ✔ | ✔ | ✔ |
| Special | ✔ | ||
| FNC1 | ✔ | ||
| Start | Start A | Start B | Start C |
| Stop | 🚫Stop | 🚫Stop | 🚫Stop |
The selection of the appropriate code set depends on the type of data being encoded and the required density. For example, if the data to be encoded contains both letters and numbers, Code Set B may be used as it can encode both uppercase and lowercase letters, numbers, and symbols. However, if the data contains only numbers, Code Set C can be used to achieve higher density.
In addition to the basic encoding characters and special characters, Code 128 also supports a number of extended ASCII characters through the use of special codes. These extended characters can be used for international language support, as well as encoding special characters not included in the basic set.
CODE-128 Barcode: Read and Decode
Code 128 is a high-density linear barcode that can encode alphanumeric and special characters. It is widely used in various industries such as logistics, retail, and healthcare due to its ability to encode large amounts of data in a compact space. To read and decode a Code 128 barcode, specialized barcode scanners are required. These scanners use a series of sensors and algorithms to capture and decode the barcode information.
- The decoding software uses algorithms to analyze the digital signal and decode the information encoded in the barcode. The information is then displayed on the scanner's screen or transmitted to a connected device such as a computer or mobile device.
- One of the key features of Code 128 is that it uses a variable-length encoding scheme, which allows it to encode both small and large amounts of data. This is achieved by using three different types of Code 128 symbols: Code Set A, Code Set B, and Code Set C.
- Code Set A can encode uppercase letters, digits, and a limited set of special characters, while Code Set B can encode uppercase and lowercase letters, digits, and a wider range of special characters. Code Set C is used to encode numeric data only and is the most efficient in terms of space usage.
- To encode data using Code 128, the appropriate Code Set must be selected based on the type of data being encoded. The start character and stop character are also added to the beginning and end of the encoded data to indicate the start and end of the barcode.
In Summary, Code 128 barcodes are read and decoded using specialized barcode scanners that use sensors and algorithms to capture and analyze the pattern of bars and spaces in the barcode. The information encoded in the barcode is then decoded using decoding software that analyzes the digital signal captured by the scanner. The variable-length encoding scheme and use of different Code Sets make Code 128 a versatile barcode that can encode large amounts of data in a compact space.
Advantages of Code-128 Barcode
Code 128 is a highly versatile barcode symbology that offers many advantages for businesses and organizations looking to streamline their data collection and inventory management processes. Some of the key advantages of using Code 128 barcode include:
-
Compatibility:
Code 128 barcodes can be read by a wide range of barcode scanners and software applications. This makes them a highly versatile barcode symbology that can be used in a variety of different industries and applications.
-
Easy to Print:
Code 128 barcodes can be printed using a wide range of printing technologies, including inkjet, laser, and thermal transfer printers. They can also be printed on a variety of materials, including paper, plastic, and metal.
-
High Density:
Code 128 barcodes are capable of encoding a large amount of data in a relatively small space. This makes them ideal for applications where space is limited, such as product packaging or shipping labels.
-
High Scanning Speed:
Speed: Code 128 barcodes can be read quickly and accurately, even at high speeds. This makes them a good choice for applications where speed and efficiency are important, such as in manufacturing and distribution centres.
-
Wide Range of Characters:
Code 128 barcodes can encode the full ASCII character set, which includes letters, numbers, punctuation marks, and special characters. This makes them a good choice for businesses that need to encode a wide range of data, such as product descriptions, serial numbers, and other identifiers.
-
Variable Length:
Unlike some other barcode types, Code 128 barcodes do not have a fixed length. They can be as short as a single character or as long as 80 characters or more, depending on the amount of data that needs to be encoded. This flexibility makes them adaptable to a wide range of applications.
-
High Reliability:
Code 128 barcodes are highly reliable, with a low error rate. This is due to the fact that they include a built-in error detection and correction mechanism that ensures data accuracy even in the presence of printing or scanning errors.
Overall, the versatility, reliability, and ease of use of Code 128 barcodes make them a popular choice for businesses and organizations looking to streamline their data collection and inventory management processes.
Download and Install

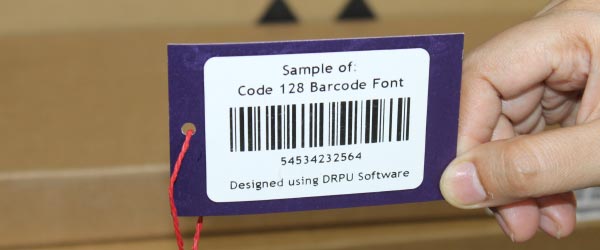

CODE-128 Barcode SoftwareGenerate a CODE-128 Barcode
Code 128 is a high-density linear barcode that encodes alphanumeric data. It is widely used in various industries such as logistics, healthcare, and retail due to its versatility and reliability. To generate a Code 128 barcode, you can use various software applications or online barcode generators. In this article, we will provide a step-by-step guide on how to generate Code 128 barcodes using two popular tools: Microsoft Excel and an online barcode generator.
Microsoft Excel is a widely used spreadsheet program that offers various features, including the ability to generate barcodes. Here are the steps to create a Code 128 barcode using Excel:
| STEPS | INSTRUCTIONS |
|---|---|
| STEP-1: | Open Microsoft Excel and create a new spreadsheet. |
| STEP-2: | Enter the data you want to encode in the barcode in a cell. |
| STEP-3: | Click on the "Insert" tab in the Excel ribbon and select "Barcode" from the "Add-ins" group. |
| STEP-4: | Select "Code 128" from the list of barcode types. |
| STEP-5: | In the "Data" field, select the cell containing the data you want to encode. |
| STEP-6: | Click on "Insert" to generate the barcode. |
| STEP-7: | You can customize the appearance of the barcode by changing the font type, size, and color. |
| STEP-8: | Print the barcode by clicking on "File" and selecting "Print". |
There are various online barcode generators that allow you to generate Code 128 barcodes quickly and easily. Here are the steps to create a Code 128 barcode using an online barcode generator:
| STEPS | INSTRUCTIONS |
|---|---|
| STEP-1: | Open your web browser and navigate to an online barcode generator website, such as Online Barcode Generator or Barcode Generator. |
| STEP-2: | Select "Code 128" from the list of barcode types. |
| STEP-3: | Enter the data you want to encode in the barcode in the "Data" field. |
| STEP-4: | Customize the barcode by selecting the desired options, such as the barcode height, width, and color. |
| STEP-5: | Click on "Generate Barcode" to create the barcode. |
| STEP-6: | Save the barcode as an image file, such as a PNG or JPEG file. |
| STEP-7: | Print the barcode using a printer or incorporate it into your digital documents. |
In conclusion, generating a Code 128 barcode can be done quickly and easily using various software applications and online barcode generators. Whether you prefer to use Microsoft Excel or an online tool, the process involves entering the data you want to encode, selecting the barcode type, and customizing the appearance of the barcode. With its high data capacity and wide range of applications, Code 128 is a versatile barcode that can streamline various business processes.
Limitations of Code-128 Barcode
While Code 128 is a highly versatile barcode symbology, there are still some limitations to its use. Here are some of the most significant limitations:
- Size: Code 128 can become quite large, especially when encoding long strings of data. This can be a challenge when you need to print the barcode on a small label or packaging.
- Complexity: Because Code 128 is a high-density barcode symbology, it can be more challenging to print and scan than other types of barcodes. This can lead to lower read rates and more scanning errors.
- Limited character set: While Code 128 can encode a wide range of characters, it is still limited to a specific set of characters. This can be a challenge if you need to encode characters outside of the standard ASCII character set.
- Requires special software: Because Code 128 is a complex barcode symbology, it requires special software to generate and decode the barcodes. This can be a challenge if you are working with a legacy system that doesn't support Code 128.
- Limited data capacity: While Code 128 can encode a significant amount of data, it is still limited in terms of overall data capacity. If you need to encode more data than Code 128 can handle, you may need to use a different barcode symbology.
- Printing quality: As with all barcodes, the quality of the print job can significantly impact the readability of the barcode. Poor printing quality can lead to scanning errors and reduced read rates.
- Cost: Implementing Code 128 can be more expensive than other barcode symbologies, especially if you need to purchase specialized software or hardware to support it.
