Advantages Of Using Code 128 SET A Barcode

Code 128 SET A barcodes offer a number of advantages over other types of barcodes. In this article, we will explore the advantages of using Code 128 SET A barcodes.

  • ⌛ High Density:

    Code 128 SET A barcodes can encode a large amount of data in a small space. This makes them ideal for applications where space is limited, such as on small product labels or in situations where large amounts of data need to be encoded in a small space.

  • 🔨 Versatile:

    Code 128 SET A barcodes can encode a wide range of characters, including numbers, letters, and special characters. This makes them suitable for a wide range of applications, including inventory management, asset tracking, and supply chain management.

  • ⊕ Error Checking:

    Code 128 SET A barcodes include a check digit that is calculated based on the values of the data characters. This helps to ensure the accuracy of the data encoded in the barcode, reducing the risk of errors in data entry and processing.

  • 🗃 Easy to Print:

    Code 128 SET A barcodes can be printed using a variety of printing technologies, including laser printers, inkjet printers, and thermal transfer printers. This makes them easy to integrate into existing printing processes and workflows.

  • 📏 Easy to Scan:

    Code 128 SET A barcodes can be read and decoded quickly and accurately using barcode scanners or readers. This makes them ideal for applications where speed and accuracy are important, such as in retail environments or in manufacturing and logistics operations.

  • ⧟ Widely Adopted:

    Code 128 SET A barcodes are widely adopted in a variety of industries and applications. This means that there is a large installed base of scanners and readers that can be used to read and decode Code 128 SET A barcodes, making them a reliable and widely accepted barcode format.

  • 🔗 Flexible Sizing:

    Code 128 SET A barcodes can be sized to fit a wide range of applications. The barcode's dimensions can be adjusted to fit the available space, making it easy to integrate into existing packaging designs or product labeling schemes.

  • 💰 Cost Effective:

    Code 128 SET A barcodes are a cost-effective solution for encoding and tracking information. The barcodes can be printed on a variety of materials, including paper and plastic, and can be integrated into existing packaging and labeling processes with minimal additional cost.

  • 🏣 Industry Standard:

    Code 128 SET A barcodes are an industry standard and are recognized by a wide range of organizations and regulatory bodies. This makes them a reliable and widely accepted choice for encoding and tracking information in a variety of applications and industries.

In summary, Code 128 SET A barcodes offer a number of advantages over other types of barcodes. They can encode a large amount of data in a small space, are versatile, include error checking, are easy to print and scan, are widely adopted, and are cost-effective. Additionally, they are an industry standard and are recognized by a wide range of organizations and regulatory bodies.

Code 128 SET A Barcode Read and Decoded

Code 128 SET A barcodes are read and decoded using barcode scanners or readers that can interpret the information encoded in the barcode. In this article, we will explore the process of reading and decoding Code 128 SET A barcodes.

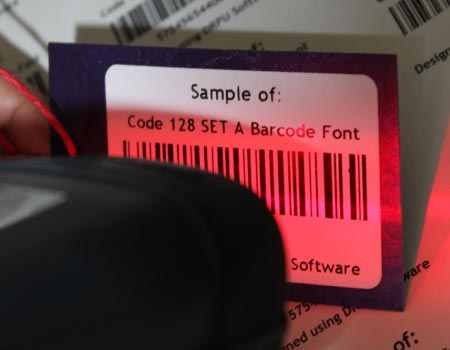

Barcode scanners
🟆 Reading Code 128 SET A Barcodes:

Step:1 Barcode scanners or readers use a combination of light sensors and decoding algorithms to read the information encoded in the barcode. When a barcode is scanned, the scanner shines a beam of light onto the barcode and detects the reflections of the light off the barcode. The light sensors in the scanner convert the reflections into electrical signals, which are then analyzed by the decoding algorithms.

Step:2 To read a Code 128 SET A barcode, the scanner first detects the start code A, which is represented by the bars and spaces 11010000100. The scanner then begins to read the data characters encoded in the barcode, starting from the left-hand side of the barcode. As the scanner reads each character, it converts the bars and spaces into a binary representation of the character's value.

Step:3 Once all the data characters have been read, the scanner calculates the check digit based on the values of the data characters. The check digit is represented by a set of bars and spaces that correspond to the binary value of the digit. The scanner uses the check digit to ensure the accuracy of the barcode data.

Step:4 Finally, the scanner detects the stop code, which is represented by the bars and spaces 1100011101011. This indicates the end of the barcode and tells the scanner to stop reading.

🟆 Decoding Code 128 SET A Barcodes:

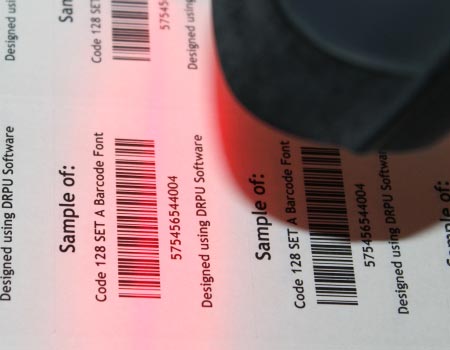

Decoding Code

Step:1 Once a Code 128 SET A barcode has been read, it must be decoded to extract the information encoded in the barcode. Decoding algorithms use a variety of techniques to analyze the binary representation of the barcode and convert it into a human-readable format.

Step:2 The first step in decoding a Code 128 SET A barcode is to convert the binary representation of each character into its ASCII equivalent. This involves mapping the binary values of each character to their corresponding ASCII codes. For example, the binary value 11011001100 maps to the ASCII code 48, which represents the digit 0.

Step:3 Once the ASCII codes for each character have been determined, the decoding algorithm can convert them into the corresponding characters using a lookup table. The lookup table maps each ASCII code to the character that it represents. For example, the ASCII code 48 maps to the character "0".

Step:3 After all the characters have been decoded, the resulting string of characters represents the information that was encoded in the barcode. This information can be used for a variety of purposes, such as tracking inventory, identifying products, or processing transactions.

In summary, Code 128 SET A barcodes are read and decoded using barcode scanners or readers that use light sensors and decoding algorithms to interpret the information encoded in the barcode. The scanner detects the start code A, reads the data characters, calculates the check digit, and detects the stop code. The decoded binary representation of the barcode is then converted into a human-readable format using a lookup table. The resulting string of characters represents the information encoded in the barcode.

Limitations Of Using Code 128 SET A Barcode

While Code 128 SET A barcodes offer a number of advantages, they also have some limitations. In this article, we will explore the limitations of using Code 128 SET A barcodes.

  • Limited Data Capacity:

    While Code 128 SET A barcodes can encode a large amount of data in a small space, they have a limited data capacity compared to some other types of barcodes. This can be a limitation in applications where a large amount of data needs to be encoded.

  • Require High-Quality Printing:

    To ensure that Code 128 SET A barcodes can be accurately read and decoded, they need to be printed with high-quality printing technology. If the barcode is not printed clearly, the scanner may not be able to accurately read the code.

  • Limited Scanning Range:

    The scanning range of Code 128 SET A barcodes is limited compared to some other types of barcodes. This can be a limitation in applications where the barcode needs to be scanned from a distance, such as the in large warehouses and outdoor environments.

  • Limited Durability:

    Code 128 SET A barcodes are not as durable as some other types of barcodes, such as QR codes or Data Matrix codes. If the barcode is exposed to moisture, heat, or other environmental factors, it may become damaged and unreadable barcodes.

  • Limited Security:

    Code 128 SET A barcodes do not offer the same level of security as some other types of barcodes, such as two-dimensional barcodes. The information encoded in a Code 128 SET A barcode can be easily read by anyone with a barcode scanner, which can be a limitation.

  • Limited Use in Healthcare:

    Code 128 SET A barcodes are not widely used in healthcare applications. In the healthcare industry, other types of barcodes, such as GS1 barcodes and 2D barcodes, are more commonly used due to higher data capacity and improved accuracy.

  • Require Line-of-Sight:

    Code 128 SET A barcodes require line-of-sight scanning, meaning that the scanner needs to be able to see the barcode in order to read it. This can be a limitation in applications where the barcode is located in a difficult-to-reach or obscured location.

  • Limited Color Options:

    Code 128 SET A barcodes are typically printed in black and white, limiting the use of color in encoding and identification.

In summary, Code 128 SET A barcodes have some limitations when compared to other types of barcodes. These limitations include a limited data capacity, the need for high-quality printing, a limited scanning range, limited durability, limited security, limited use in healthcare, line-of-sight scanning requirements, and limited color options. While these limitations may make Code 128 SET A barcodes unsuitable for some applications, they remain a widely used and reliable barcode format in a variety of industries and settings.

How do I print a Code 128 SET A barcode

Printing a Code 128 SET A barcode is a relatively simple process that can be accomplished using a variety of methods. In this article, we will discuss some of the most common ways to print a Code 128 SET A barcode.

  • Use a Label Printer:

    One of the easiest ways to print a Code 128 SET A barcode is to use a label printer. These printers are specifically designed to print labels and barcodes and typically offer high-quality, high-resolution printing. Some popular label printers include the Zebra GX430t and the Brother QL-700.

    To print a Code 128 SET A barcode using a label printer, you will first need to design your label using label printing software. This software typically allows you to select the barcode type and input the data you want to encode. Once you have designed your label, you can send it to the label printer and it will print out your barcode.

  • Use a Desktop Printer:

    Another common method for printing a Code 128 SET A barcode is to use a desktop printer. Desktop printers are widely available and can be used to print a variety of documents, including labels and barcodes. To print a Code 128 SET A barcode using a desktop printer, you will need to design your label using graphic design software or a word processor that supports barcode fonts.

    Once you have designed your label, you can select the barcode font and format the text to create the barcode image. You can then print out your label using your desktop printer.

  • Use a Mobile Printer:

    If you need to print barcodes on the go, you may want to consider using a mobile printer. These printers are lightweight and portable and can be used to print labels and barcodes from your mobile device. Some popular mobile printers include the Brother PJ723-BK and the Zebra QLn320.

    To print a Code 128 SET A barcode using a mobile printer, you will need to design your label using a mobile app that supports barcode generation. These apps typically allow you to input the data you want to encode and then generate a barcode image that can be printed out using your mobile printer.

  • Use a Barcode Scanner and Label Printing Software:

    Another option for printing Code 128 SET A barcodes is to use barcode scanner and label printing software. This software typically allows you to input the data you want to encode and then print out a sheet of barcode labels using a label printer.

    To print a Code 128 SET A barcode using barcode scanner and label printing software, you will first need to scan the product or inventory item using a barcode scanner. The software will then generate a barcode label that can be printed out using a label printer.

In summary, there are many ways to print a Code 128 SET A barcode, including using a label printer, desktop printer, mobile printer, or barcode scanner and label printing software. The method you choose will depend on your specific needs and technical expertise.

Download and Install

Code 128 SET A Barcode Software

Structure Of Code 128 SET A Barcode

Code 128 SET A is a type of linear barcode that uses a variable length format to encode data. It is capable of encoding both alphanumeric and numeric characters and is widely used in various industries for tracking and identification purposes. In this article, we will explore the structure of a Code 128 SET A barcode.

Code 128 SET A barcode is composed of several elements that work together to encode and represent the data. These elements include start code, data characters, check digit, stop code, and quiet zone.

01Data Characters

The data characters are the main component of the barcode and represent the actual data that is being encoded. Code 128 SET A barcode can encode 128 different characters, including uppercase letters, lowercase letters, numbers, and special characters such as punctuation marks and symbols.

Each character is represented by a unique set of bars and spaces that vary in width and pattern. The length of the bars and spaces is determined by the binary representation of the character.

02Check Digit

The check digit is a special character that is added to the barcode to ensure data accuracy and integrity. It is calculated based on a mathematical formula that takes into account the values of all the data characters in the barcode.

The check digit is added to the barcode after the data characters and is represented by a unique set of bars and spaces. The check digit for Code 128 SET A is calculated using the Modulo 103 algorithm.

03Start Code

The start code is the first element of a Code 128 SET A barcode. It consists of three bars and three spaces and is used to indicate the beginning of the barcode. The start code for SET A is 103.

04Stop Code

The stop code is the final element of the barcode and is used to indicate the end of the barcode. The stop code for Code 128 SET A is 106 and consists of three bars and three spaces.

05Prevent future damage

To prevent future damage to your barcodes, consider using high-quality barcode labels and protecting the labels from moisture, heat, and other elements that may cause damage.

06Quiet Zone

The quiet zone is a clear space that surrounds the barcode and is used to ensure accurate scanning and reading of the barcode. The quiet zone must be free of any markings, text, or graphics and must be a minimum of 10 times the width of the narrowest bar in the barcode.

In summary, the structure of a Code 128 SET A barcode consists of five main elements: start code, data characters, check digit, stop code, and quiet zone. Each element plays a critical role in encoding and representing the data and ensuring accurate scanning and reading of the barcode.
